   SEEKONK PRECISION TOOL > TSQ/TSF Series Rigid Frame Dial Type Torque Wrenches



ÀÌÀü»óǰ TSQ/TSF Series Rigid Frame Dial Type Torque Wrenches ´ÙÀ½»óǰ


»óǰ »ó¼¼ ¼³¸í

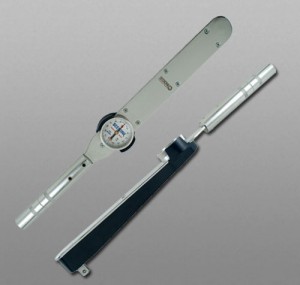

TSQ/TSF Series Rigid Frame Dial Type Torque Wrenches


Seekonk rigid frame dial type torque wrenches have become the standard by which the competition is judged. Unique durability is built into tools shaped from chrome plated high alloy steel. These tools feature a torsional bar system manufactured from a special molybdenum alloy steel that is electronically heat treated to exacting standards. Mated to these exclusive torsional elements are precision Swiss made dial indicators resulting in uncompromised accuracy, even after years of service. Seekonk dials are uncomplicated and simple to read thereby eliminating errors so common in other brands.

Standard accuracy is +/- 3%, however, higher accuracy and metric models are available on special order. All models are also available with a Memory Needle or Audible/Visual Signal. Conforms to Federal Specification GGG-W-00686C.

TSF-25 thru TSF-300 available with high impact plastic case. TSF-350 thru TSF-600 available with heavy gauge metal carrying case.

NOTE: INLINE RATCHET available on 3/4" sq. drive models.

All tools are manufactured in Massachusetts and are shipped with complementary NIST certs.

MADE IN USA

Model #

Torque Range

Dial Graduations

Drive Size

Overall Length

Weight

in.lb
TSQ-30 0-30 in. lbs. 1/2 in. lb. 1/4" 10" 14 ozs.
TSQ-75 0- 75 in. lbs. 1 in. lb. 1/4" 10" 14 ozs.
TSQ-100 0-100 in. lbs. 2 in. lbs. 3/8" 10" 14 ozs.
TSQ-150 0-150 in. lbs. 2 1/2 in. lbs. 3/8" 10" 14 ozs.
TSQ-300 0-300 in. lbs. 5 in. lbs. 3/8" 2 1/2" 1 1/4 lbs.
TSQ-600 0-600 in. lbs. 10 in. lbs. 3/8" 2 1/2" 1 1/4 lbs.
ft.lb
TSF-25 0-25 ft. lbs. 1/2 ft. lb. 3/8" 12 1/2" 1 1/4 lbs.
TSF-50 0-50 ft. lbs. 1 ft. lb. 3/8" 12 1/2" 1 1/4 lbs.
TSF-50 0-50 ft. lbs. 1 ft. lb. 1/2" 18 1/2" 2 1/2 lbs.
TSF-100 0-100 ft. lbs. 2 ft. lb. 1/2" 18 1/2" 2 1/2 lbs.
TSF-150 0-150 ft. lbs. 5 ft. lbs. 1/2" 18 1/2" 2 1/2 lbs.
TSF-175 0-175ft. lbs. 5 ft. lbs. 1/2" 18 1/2" 2 1/2 lbs.
TSF-200 0-200ft. lbs. 4 ft. lbs. 1/2" 18 1/2" 2 1/2 lbs.
TSF-250-1/2 0-250 ft. lbs. 5 ft. lbs. 1/2" 21" 2 1/2 lbs.
TSF-250-3/4 0-250 ft. lbs. 5 ft. lbs 3/4" 21" 6 1/2 lbs.
TSF-300 0-300 ft. lbs. 10 ft. lbs 3/4" 30" 6 1/2 lbs.
TSF-350 0-350 ft. lbs. 10 ft. lbs 3/4" 30" 6 1/2 lbs.
TSF-420 0-420 ft. lbs. 10 ft. lbs 3/4" 40" 9 lbs.
TSF-600 0-600 ft. lbs. 20 ft. lbs 3/4" 40" 9 lbs.
