TORQUEWORLD

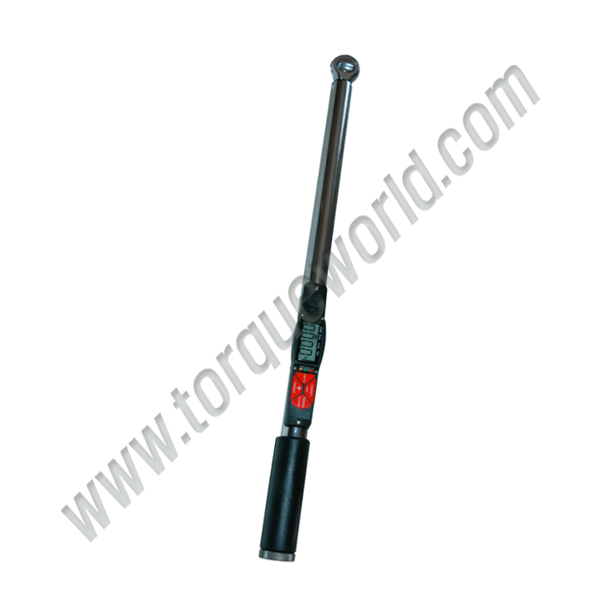

Super Duty Electronic Torque Wrench EX Series
|
설정토크근사치도달 時 |
설정토크 內 |
설정 토크 오버 時 |
|
|
|
|
|
각 단계에서 변하는 램프의 색 |
|
|
|
|
|

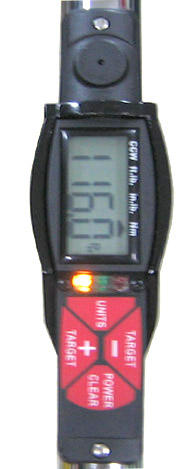

황색 램프 켜짐
디스플레이에 측정값 표시 |

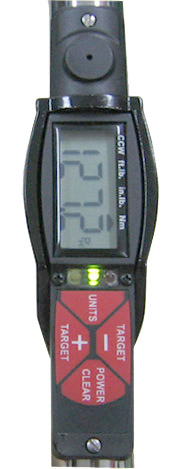

녹색 램프 켜짐
"삐" 벨소리 1번울림
디스플레이에 측정값 표시 |

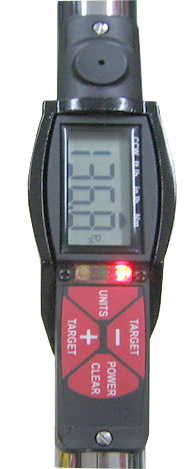

빨강 램프 켜짐
"삐삐삐.." 벨소리 연속울림
디스플레이에 측정값 표시 |
Key Benefits:
Affordable - Starts at $300.00
Accurate - Up to 1% 2% Standard
Easy to use - Learn in seconds (see pdf file above)
Durable- Designed to take abuse
Two way communication with computer
* Output torque to computer or data logger
* Upload variables to the wrench from a computer (special software required)
Three Measurement units
Three way Lights and buzzer
Rechargeable Batteries (-P models)
Small Arc Ratchet
Programmable Go/No Go target zone
Automatic Clear function
Large Easy to Understand keypad
Peak Hold mode captures highest torque reading
AutoClear clears the peak torque automatically without pressing keys
NEW ROTARY HEAD FEATURE ALLOWS EASY VIEWING FROM ALL ANGLES
(AVAILABLE 4/2005) Pat. Pend.
JETCO electronic torque wrenches are accurate, durable, easy to use and easy to learn.
These are the first true production electronic torque wrench. No Engineering degree need-
ed to operate this wrench, just turn it on and go to work!
SUPER DUTY ELECTRONIC TORQUE WRENCH 2% accuracy standard
|
Model |
Drive
Size/Type |
Torque Range |
Overall length |
Weight |
|
ft.lb |
N.m |
in.lb |
| EX-250I |
3/8" Ratchet |
2.1-21 ft.-lb.
|
3.0-30 Nm |
25-250 in.lb. |
15" 381 mm |
2.2 lb |
| EX-100F |
3/8" Ratchet |
10-100 ft.-lb.
|
13.6-136 Nm |
120-1200 in.lb. |
17" 431 mm |
2.4 lb |
| EX-150F |
1/2" Ratchet |
15-150 ft.-lb.
|
20-204 Nm |
180-1800 in.lb. |
19" 480 mm |
2.8 lb |
| EX-250F |
1/2" Ratchet |
25-250 ft.-lb.
|
34-340 Nm |
300-3000 in.lb. |
22" 550 mm |
3.0 lb |
카다록 다운받기
(클릭하시면 본상품의 카다록을 다운받으실수있습니다.)
|
