상품 상세 설명


   각종디지탈 토크렌치 > IL Series Digital Torque Wrench



이전상품 IL Series Digital Torque Wrench 다음상품


상품 상세 설명





TORQUEWORLD
Digital Torque Wrench IL Series




제품의 특장점


▶ 작업공간의 제약을 받지 않습니다.
  ▶ 휴대가 간편합니다.
  ▶ 정확한 토크측정에 적합합니다.
  ▶ 다양한 용도의 토크측정이 가능합니다.

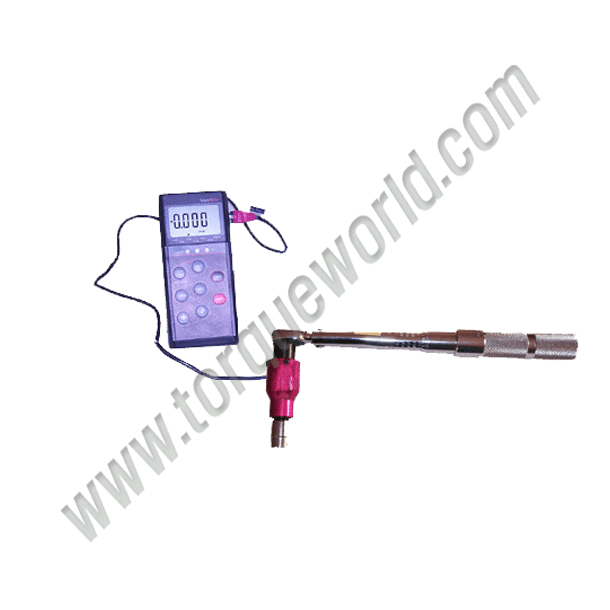

In-line extension
transducers connect between a wrench and a socket and measure the torque that is applied to a fastener.  This versatile type of transducer converts a hand held torque meter into a highly accurate digital torque wrench.  In-line transducers can also be used as a torque wrench tester if they are mounted to a fixture.




Key Benefits

Test and calibrate all torque wrenches (includes first peak mode for testing click wrenches)

Accuracy: +/- .5%  or better from 10-100% of range (with bench mount transducers) +/1 one torque increment.

8,000 sample per second sampling rate means you can test pulse tools

Dual processor system for top performance.

Quickly set target torque with visual and audible prompting of pass/fail conditions

Test  your torque wrenches in-house and save $$$

Adapts to any JETCO torque transducer

Adapts to third party torque transducers

Memory for up to 1000 torque values

Software selectable filters for power tool testing (170Hz,500Hz,1500Hz,2500Hz,3600Hz)

Rechargeable 9 volt battery with power adapter included (run meter while battery is charging).

Auto reset for no hands operation, timed reset and manual reset also included.

Automatic clockwise and counterclockwise operation.

RS232 cable and adapter comes standard for data transfer to a computer or printer.

Accuracy and calibration traceable to NIST for ISO requirements.

Perfect for calibration labs and all testing  and calibration of torque products



The TS-1000 kit includes:

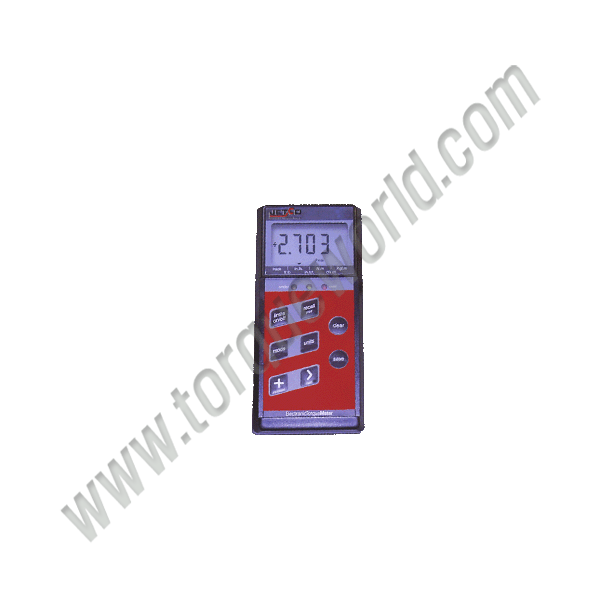

TS-1000 torque meter
RS232c serial printer/computer adapter cable and connector
110 volt power adapter
Rechargeable 9 volt battery
Operation manual



Model

Range

Drive

Weigth

Accuracy

in.lb

ft.lb

N.m

IL-250I

25-250 in.-lb

2-21ft.-lb.

2.8-28N.m

3/8"Female to 3/8" Male

115g

1% Indicated Value

IL-50F

5-50 ft.-lb.

60-600 in.-lb

6.8-68Nm

3/8"Female to 3/8" Male

115g

1% Indicated Value

IL-150F

15-150 ft.-lb.

180-1800 in.-lb

20.5-205N.m

1/2"Female to 1/2" Male

270g

1% Indicated Value

IL-250F

25-250 ft.-lb.

300-3000 in.-lb

34-340N.m

1/2"Female to 1/2" Male

270g

1% Indicated Value

IL-1000F

100-1000ft.-lb.

1200-12000 in.-lb

135-1350N,m

1"Female to 1" Male

2.3Kg

1% Indicated Value

IL-2000F

200-2000ft.-lb.

2400-24000 in.-lb

270-2700N,m

1"Female to 1" Male

2.3Kg

1% Indicated Value
