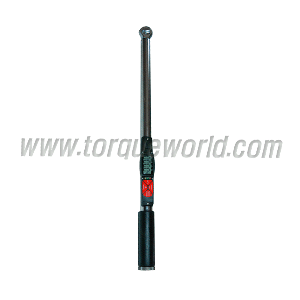

EX Series Electronic Torque Wrenches Production and Quality Control
 |
EX Series
- Accurate - Up to 1% 2% Standard
- Easy to use - Learn in seconds (see
- pdf file above)
- Durable- Designed to take abuse
- Two way communication with computer
Output torque to computer or data logger Upload variables to the wrench from a computer (special software required)
- Three Measurement units
- Three way Lights and buzzer
- Rechargeable Batteries (-P models)
- Small Arc Ratchet
- Programmable Go/No Go target zone
- Automatic Clear function
- Large Easy to Understand keypad
- Peak Hold mode captures highest
- torque reading
- AutoClear clears the peak torque automatically without pressing keys
- NEW ROTARY HEAD FEATURE ALLOWS EASY VIEWING FROM ALL ANGLES
(AVAILABLE 4/2005) Pat. Pend.
|
JETCO electronic torque wrenches are accurate, durable, easy to use and easy to learn. These are the first true production electronic torque wrench. No Engineering degree need- ed to operate this wrench, just turn it on and go to work!
Torque reached |
Set torque |
Torque over |

|

|
.
|
(°¢ ´Ü°è¿¡¼ º¯ÇÏ´Â ·¥ÇÁÀÇ »ö) |
(¼³Á¤ ÅäÅ© µµ´Þ) Ȳ»ö ·¥ÇÁ ÄÑÁü µð½ºÇ÷¹ÀÌ¿¡ ÃøÁ¤°ª Ç¥½Ã |
(¼³Á¤ ÅäÅ©) ³ì»ö ·¥ÇÁ ÄÑÁü "»ß" º§¼Ò¸® 1¹ø¿ï¸² µð½ºÇ÷¹ÀÌ¿¡ ÃøÁ¤°ª Ç¥½Ã |
(¼³Á¤ ÅäÅ© ¿À¹ö) »¡° ·¥ÇÁ ÄÑÁü "»ß»ß»ß.." º§¼Ò¸® ¿¬¼Ó¿ï¸² µð½ºÇ÷¹ÀÌ¿¡ ÃøÁ¤°ª Ç¥½Ã |
Model.
|
Drive Size/Type
|
Torque Range
|
Overall length
|
Weight |
EX-250I |
3/8" Ratchet |
2.1-21 ft.-lb. 3.0-30 Nm 25-250 in.lb.
|
15" 381 mm |
2.2 lb |
EX-100F |
3/8" Ratchet |
10-100 ft.-lb. 13.6-136 Nm 120-1200 in.lb.
|
17" 431 mm |
2.4 lb |
EX-150F |
1/2" Ratchet |
15-150 ft.-lb. 20-204 Nm 180-1800 in.lb.
| 19" 480 mm |
2.8 lb |
EX-250F |
1/2" Ratchet |
25-250 ft.-lb. 34-340 Nm 300-3000 in.lb.
| 22" 550 mm |
3.0 lb |  ÇÑ±Û »ç¿ë ¼³¸í¼ ´Ù¿î¹Þ±â (Ŭ¸¯ÇϽøé Çѱۼ³¸í¼¸¦ ´Ù¿î¹ÞÀ»¼ö ÀÖ½À´Ï´Ù.)
 Ä«´Ù·Ï ´Ù¿î¹Þ±â (Ŭ¸¯ÇÏ½Ã¸é º»»óÇ°ÀÇ Ä«´Ù·ÏÀ» ´Ù¿î¹ÞÀ¸½Ç¼öÀÖ½À´Ï´Ù.) |
